1029nm纳秒激光器具有较高的单脉冲能量,脉宽达2ns,非常适合激光诱导击穿光谱LIBS和其它激光激发应用。
![$title]( "$title")
![$title]( "$title")
1029nm纳秒激光器规格参数
| Parameter |
Minimum Value |
Typical Value |
Maximum Value |
| Central Wavelength, nm |
1028 |
1030 |
1032 |
| Longitudinal modes |
- |
multiple |
- |

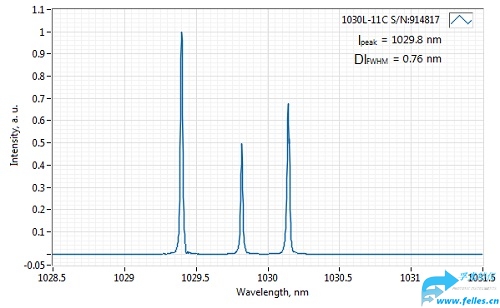

| Spectral line width FWHM, nm |
- |
0.7 |
1 |
| Output power, mW |
- |
As per request |
500 |
| Pulse duration, ns (polarized version) |
1.4 |
1.5 |
1.8 |
| Pulse duration, ns (non-polarized version) |
1.2 |
1.3 |
1.6 |
| Repetition rate, kHz (depending on pulse energy) |
1 |
As per request |
35 |
| Pulse energy, µJ |
- |
As per request |
100 |
| Power stability, % (RMS, 8 hrs) |
- |
0.5 1 |
1 |
| Pulse-to-pulse stability |
- |
2 |
5 |
| Transversal modes |
- |
TEM00 |
- |
| Beam Diameter at Aperture (1/e2), mm |
- |
1 |
- |
| Beam divergence (full angle), mrad |
- |
1 |
1.1 |
| M2 effective |
- |
1.1 |
1.2 |
| Polarization direction |
- |
Horizontal 2 |
- |
| Polarization contrast |
- |
better than 500:1 |
- |
| Control interface type |
- |
UART/USB |
- |
| Operation mode |
- |
APC (CW) |
- |
| Input voltage, VDC |
- |
5 |
- |
| External power supply requirement |
- |
+5 V DC, 5A |
- |
| Dimensions (L-W-H), mm |
- |
50 x 30 x 16 3 |
- |
| Beam height from the base, mm |
- |
10.4 |
- |
| Heat-sinking requirement, °C/W |
- |
0.5 |
- |
| Optimum heatsink temperature, °C |
- |
20 |
- |
| Warm up time, mins (cold start) |
- |
10 |
- |
| Temperature stabilization |
- |
Yes |
- |
| Overheat protection |
- |
Yes |
- |
| Storage temperature, °C (non-condensing) |
- |
- |
- |
| Net weight, kg |
- |
0.29 |
- |
| Max. power consumption, W |
- |
14 (10000) |
- |
| Warranty, months (op. hrs) |
- |
14 (10000) 4 |
- |
| RoHS |
- |
Yes |
- |
| CE compliance |
- |
- General Product Safety Directive (GPSD) 2001/95/EC
- (EMC) Directive 2004/108/EC |
- |
| Laser Safety Class |
- |
3B |
- |
| OEM lasers are not compliant with |
- |
IEC60825-1:2014 (compliant using additional accessories) |
- |
