| Parameter |
Minimum Value |
Typical Value |
Maximum Value |

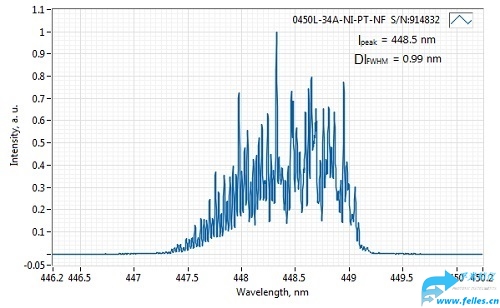

| Central Wavelength, nm |
440 |
450 |
460 |
| Spectral line width FWHM, nm |
0.1 |
1 |
2 |
| Output power, mW |
- |
1000 1 |
- |
| Power stability, % (RMS, 8 hrs) |
- |
0.2 2 |
2 |
| Power stability, % (peak-to-peak, 8 hrs) |
- |
1 3 |
3 |
| Noise, % (RMS, 20 Hz to 20 MHz) |
- |
0.8 4 |
2 |
| Transversal modes |
- |
|
- |
| Beam Diameter at Aperture (1/e2), mm |
- |
1 x 3 |
- |
| Beam divergence (full angle), mrad |
- |
less than 1.1 (horizontal) |
- |
| M2 effective |
- |
N/A |
- |
| Polarization direction |
- |
Horizontal 5 |
- |
| Polarization contrast |
- |
100 |
- |
| Control interface type |
- |
UART/USB |
- |
| Operation mode |
- |
APC (CW) |
- |
| Modulation bandwidth, MHz |
- |
optional 6 |
- |
| Input voltage, VDC |
4.8 |
5 |
5.3 |
| External power supply requirement |
- |
in 100-240 VAC, out +5 V DC, 2.5 Amps |
- |
| Dimensions, mm |
- |
50 x 30 x 16 7 |
- |
| Beam height from the base, mm |
- |
10.4 |
- |
| Heat-sinking requirement, °C/W |
- |
2 |
- |
| Optimum heatsink temperature, °C |
15 |
20 |
30 |
| Warm up time, mins (cold start) |
0.1 |
0.5 |
1 |
| Temperature stabilization |
- |
Yes |
- |
| Overheat protection |
- |
Yes |
- |
| Storage temperature, °C (non-condensing) |
-10 |
- |
50 |
| Net weight, kg |
0.1 |
0.12 |
0.14 |
| Max. power consumption, W |
5 |
10 |
20 |
| Warranty, months (op. hrs) |
- |
14 (10000) 8 |
- |
| RoHS |
- |
Yes |
- |
| CE compliance |
- |
- General Product Safety Directive (GPSD) 2001/95/EC
- (EMC) Directive 2004/108/EC |
- |
| Laser Safety Class |
- |
4 |
- |
| OEM lasers are not compliant with |
- |
IEC60825-1:2014 (compliant using additional accessories) |
