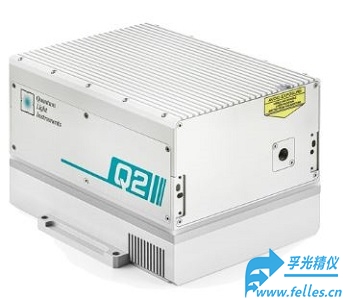

1053nm/1064nm纳秒DPSS激光器
这款1053nm/1064nm纳秒DPSS激光器采用调Q脉冲激光器技术,可输出1064nm, 532nm, 355nm, 266nm, 213nm, 1053nm, 526.5nm, 351nm, 263nm, 211nm激光波长,编号：FPQLI-Q2价格：￥0.00数量：在线客服邮箱 info@felles.cn 服务热线021-2279 9028 您也可网站留言或在线客服留言垂询，孚光精仪-**的进口激光精密科学仪器服务商欢迎您！ -
- 商品详情
这款1053nm/1064nm纳秒DPSS激光器采用调Q脉冲激光器技术,可输出1064nm, 532nm, 355nm, 266nm, 213nm, 1053nm, 526.5nm, 351nm, 263nm, 211nm激光波长,采用Nd:YLF半导体泵浦固体激光DPSS技术制造,结构紧凑而能量稳定,feichang适合激光诱导击穿光谱LIBS,光致荧光光谱LIF,激光烧蚀和激光遥感等应用。
1053nm/1064nm纳秒DPSS激光器*点
输出高达80mJ脉冲能量，平均功率可达2W空气冷却制冷,不需要水冷
重复频率可达100Hz短脉冲脉宽＜2.5ns重复频率可调内置同步脉冲发生器，用于触发用户其它设备，方便使用。通过内置的以太网或WiFi接口进行远程控制可选二倍频,三倍频,四倍频或五倍频等谐波发生器。可选基频光衰减器可选的光纤耦合输出寿命高达2G个激光脉冲
![$title]( "$title")
1053nm/1064nm纳秒DPSS激光器简述1053nm/1064nm纳秒DPSS激光器是一款紧凑高效的空气制冷Q开关激光器,具较高的脉冲峰值功率，feichang适合激光诱导击穿光谱LIBS,光致荧光光谱LIF,激光烧蚀和激光遥感等应用。1053nm/1064nm纳秒DPSS激光器可产生80mJ@10Hz或20mJ@100Hz的激光脉冲,具有超低发散角和较高的倍频效率,***高可到倍频波长211nm,使用OPO后波长可扩展到红外范围。1053nm/1064nm纳秒DPSS激光器采用全空气冷却模式得益于它*越的wall-plug效率，液体不用于传热，因此不需要经常*换冷却液或清洗冷却系统。在内部触发模式下具有较低抖动,可采用脉冲触发用户设备,如果需要，激光脉冲可以从延时发生器外部触发,允许在单次发射（single-shot）或可变脉冲重复模式下操作。具有以太网接口,方便从电脑上控制和监测激光器,WiFi可选。
这款1053nm/1064nm纳秒DPSS激光器可配置1053nm和1064nm基频波长，其中1053nm激光器采用Nd:YLF晶体，可以在单脉冲到***高重复频率范围内工作，而不改变发散角和光束质量。
1053nm/1064nm纳秒DPSS激光器应用激光诱导击穿光谱LIBS
时间飞行光谱TOFS
激光诱导荧光光谱LIF
激光闪光光解
基质辅助激光解析电离MALDI
脉冲光沉积PLD
遥感
激光烧蚀
TFT-LCD激光修复
1053nm/1064nm纳秒DPSS激光器参数Specification at 10-20 Hz pulse repetition rate1)
Model
Q2
New
-B10
-C10
-D10
-E10
-F10
-F20
Wavelength, nm
1064/1053 nm
1053 nm
Pulse repetition rate 2)
10 Hz
20 Hz
Pulse energy 3)
8/10 mJ
16/20 mJ
32/40 mJ
60/65 mJ
80 mJ
70 mJ
Typical pulse duration 4)
< 8 ns
<7 ns
<5 ns
Pulse energy stability 5)
< 0.5 % RMS
Power drift 6)
± 3.0 %
Beam profile
Bell-shaped, >80% fit to Gaussian
Beam divergence 7)
<1.5 mrad
<1 mrad
Polarization
Linear, horizontal
Typical beam diameter 8)
1.5 mm
2.0 mm
3.0 mm
4.0 mm
Jitter 9)
< 0.5 ns RMS
Optional harmonics generator 10)
Pulse energy 3)
532 / 526.5 nm
4/5 mJ
8/10 mJ
16/20 mJ
30/32 mJ
40 mJ
35 mJ
355/351 nm
2.4/3 mJ
4.5/6 mJ
9/12 mJ
18/20 mJ
24 mJ
21 mJ
266/263 nm
1.2/1.5 mJ
2.4/3 mJ
5/6 mJ
9/10 mJ
12 mJ
11 mJ
213/211 nm
0.4 mJ
1 mJ
2 mJ
3.5 mJ
5 mJ
4.2 mJ
Optional attenuator 11)
Transmission range
0.5 – 95 %
1 – 95 %
Dimensions
Laser head ( W×L×H)
160× 230 × 141 mm3
Controller unit (W×L×H)
108× 191 × 59 mm3
Power adapter (W×L×H) 12)
50 × 125 × 31 mm3 or 192 x 172 x 46 m3
Operating requirements
Cooling requirements
Air cooled
Ambient temperature
15 – 30 ºC
Relative humidity
10 – 80 % (non-condensing)
Mains voltage
90-230 VAC, single phase, 47-63 Hz 13)
Average power consumption
30 W
40 W
50 W
60 W
80 W
Specification at 20-30 Hz pulse repetition rate1)
Model Q2
-B20
-C20
-D20
-E20
-D33
-E33
Wavelength, nm 1064/1053 nm
1064 nm
Pulse repetition rate 2) 20 Hz
33.3 Hz
Pulse energy 3) 8/10 mJ
16/20 mJ
32/40 mJ
60/65 mJ
40 mJ
60 mJ
Typical pulse duration 4) < 7 ns
< 5 ns
Pulse to pulse energy stability 5) < 0.5 % RMS
Power drift 6) ± 3.0 %
Beam profile
Bell-shaped, >80 % fit to Gaussian
Beam divergence 7) <1.5 mrad
<1 mrad
Polarization Linear, horizontal
Typical beam diameter 8) 1.5 mm
3.0 mm
4.0 mm
Jitter 9) < 0.5 ns RMS
Optional harmonics generator 10) Pulse energy 3) 532/526.5 nm 4/5 mJ
8/10 mJ
16/20 mJ
30/32 mJ
20 mJ
30 mJ
355/351 nm 2.4/3 mJ
4.5/6 mJ
9/12 mJ
18/20 mJ
12 mJ
18 mJ
266/263 nm 1.2/1.5 mJ
2.4/3 mJ
5/6 mJ
9/10 mJ
6 mJ
9 mJ
213/211 nm 0.4 mJ
1 mJ
2 mJ
3 mJ
2 mJ
2.5 mJ
Optional attenuator 11) Transmission range
1 – 95 %
Dimensions Laser head ( W×L×H) 160× 230 × 141 mm3
Controller unit (W×L×H) 108× 191 × 59 mm3
Power adapter (W×L×H) 12) 192 × 178 × 46 mm3 typical
Operating requirements Cooling requirements
Air cooled
Ambient temperature 15 – 30 ºC
Relative humidity 10 – 80 % (non-condensing)
Mains voltage 90-230 VAC, single phase, 47-63 Hz 13)
Average power consumption 30 W
40 W
70 W
80 W
100 W
Specification at 50 Hz pulse repetition rate1)
Model Q2
-A50
-B50
-C50
-D50
Wavelength, nm 1064/1053 nm
1064 nm
Pulse repetition rate 2) 50 Hz
Pulse energy 3) 5 mJ
8/10 mJ
16/20 mJ
40 mJ
Typical pulse duration 4) < 7 ns
<6 ns
<5 ns
Pulse to pulse energy stability 5) < 0.5 % RMS
Power drift 6) ± 3.0 %
Beam profile
Bell-shaped, >80 % fit to Gaussian
Beam divergence 7) <1 mrad
Polarization Linear, horizontal
Typical beam diameter 8) 1.5 mm
2.5 mm
3.5 mm
Jitter 9) < 0.5 ns RMS
Optional harmonics generator 10) Pulse energy 3) 532/526.5 nm 2.5 mJ
4/5 mJ
8/10 mJ
20 mJ
355/351 nm 1.5 mJ
2.4/3 mJ
4.5/6 mJ
12 mJ
266/263 nm 0.7 mJ
1.2/1.5 mJ
2.4/3 mJ
6 mJ
213/211 nm 0.2 mJ
0.4 mJ
0.8 mJ
1.5 mJ
Optional attenuator 11) Transmission range
1 – 95 %
Dimensions Laser head ( W×L×H) 160× 230 × 141 mm3
Controller unit (W×L×H) 108× 191 × 59 mm3
Power adapter (W×L×H) 12) 192 × 178 × 46 mm3 typical
Operating requirements Cooling requirements
Air cooled
Ambient temperature 15 – 30 ºC
Relative humidity 10 – 80 % (non-condensing)
Mains voltage 90-230 VAC, single phase, 47-63 Hz 13)
Average power consumption 30 W
50 W
80 W
100 W
Specification at 100-200 Hz pulse repetition rate1)
Model Q2
-200
-100
-A100
-B100
-C100
Wavelength, nm 1064 nm
Pulse repetition rate 2) 200 Hz
100 Hz
Pulse energy, mJ 3) 1 mJ
2.5 mJ
5 mJ
10 mJ
20 mJ
Typical pulse duration 4) < 10 ns
<8 ns
<7 ns
Pulse to pulse energy stability 5) < 0.5 % RMS
Power drift 6) ± 3.0 %
Beam profile
Bell-shaped, >80 % fit to Gaussian
Beam divergence 7) < 2 mrad
< 1.5 mrad
<1 mrad
Polarization Linear, horizontal
Typical beam diameter 8) 1.5 mm
2.0 mm
2.5 mm
3.5 mm
Jitter 9) < 0.5 ns RMS
Optional harmonics generator 10) Pulse energy 3) 532 nm 0.5 mJ
1.25 mJ
2.5 mJ
5 mJ
10 mJ
355 nm 0.25 mJ
0.6 mJ
1.5 mJ
3 mJ
6 mJ
266 nm 0.1 mJ
0.3 mJ
0.7 mJ
1.5 mJ
3 mJ
213 nm 0.02 mJ
0.1 mJ
0.25 mJ
0.5 mJ
1 mJ
Optional attenuator 12) Transmission range
1 – 95 %
Dimensions Laser head ( W×L×H) 160× 230 × 141 mm3
Controller unit (W×L×H) 108× 191 × 59 mm3
Power adapter (W×L×H) 12) 192 × 178 × 46 mm3 typical (for +28 VDC output)
Operating requirements Cooling requirements
Air cooled
Ambient temperature 15 – 30 ºC
Relative humidity 10 – 80 % (non-condensing)
Mains voltage 90-230 VAC, single phase, 47-63 Hz 13)
Average power consumption 40 W
50 W
70 W
80 W
100 W
1. Due to continuous improvements all specifications are subject to change. Unless stated otherwise all
