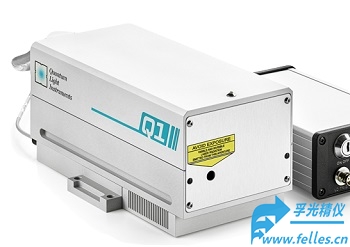

二极管泵浦纳秒激光器-8ns
这款二极管泵浦纳秒激光器采用纳秒DPSSL激光器技术,可输出1064nm,532nm,355nm,266nm,213nm,1053nm,526.5nm,351nm,263nm,211nm激光波长,采用Nd:YAG半导体泵浦固体激光DPSS技术制造,结构紧凑而能量稳定,适合激光诱导击穿光谱LIBS,光致荧光光谱LIF,激光烧蚀和激光遥感等应用。45mJ@10Hz或10mJ@50Hz的激光脉冲,脉宽<8ns.编号：FPQLI-Q1价格：￥0.00数量：在线客服邮箱 info@felles.cn 服务热线021-2279 9028 您也可网站留言或在线客服留言垂询，孚光精仪-**的进口激光精密科学仪器服务商欢迎您！ -
- 商品详情
这款二极管泵浦纳秒激光器采用纳秒DPSSL激光器技术,可输出1064nm,532nm,355nm,266nm,213nm,1053nm,526.5nm,351nm,263nm,211nm激光波长,采用Nd:YAG半导体泵浦固体激光DPSS技术制造,结构紧凑而能量稳定,适合激光诱导击穿光谱LIBS,光致荧光光谱LIF,激光烧蚀和激光遥感等应用。
二极管泵浦纳秒激光器*点
输出高达45mJ脉冲能量，平均功率可达0.5W空气冷却制冷,不需要水冷短脉冲脉宽＜8ns重复频率可调内置同步脉冲发生器，用于触发用户其它设备，方便使用。通过内置的以太网或WiFi接口进行远程控制可选二倍频,三倍频,四倍频或五倍频等谐波发生器。可选基频光衰减器可选的光纤耦合输出寿命高达2G个激光脉冲
![$title]( "$title")
二极管泵浦纳秒激光器简述二极管泵浦纳秒激光器是一款紧凑高效的空气制冷Q开关激光器,具较高的脉冲峰值功率，feichang适合激光诱导击穿光谱LIBS,光致荧光光谱LIF,激光烧蚀和激光遥感等应用。二极管泵浦纳秒激光器可产生45mJ@10Hz或10mJ@50Hz的激光脉冲,具有超低发散角和较高的倍频效率,***高可到倍频波长211nm,使用OPO后波长可扩展到红外范围。采用全空气冷却模式得益于它*越的wall-plug效率，液体不用于传热，因此不需要经常*换冷却液或清洗冷却系统。在内部触发模式下具有较低抖动,可采用脉冲触发用户设备,如果需要，激光脉冲可以从延时发生器外部触发,允许在单次发射（single-shot）或可变脉冲重复模式下操作。具有以太网接口,方便从电脑上控制和监测激光器,WiFi可选。
二极管泵浦纳秒激光器应用激光诱导击穿光谱LIBS
时间飞行光谱TOFS
激光诱导荧光光谱LIF
激光闪光光解
基质辅助激光解析电离MALDI
脉冲光沉积PLD
遥感
激光烧蚀
TFT-LCD激光修复
二极管泵浦纳秒激光器技术参数重复频率为 10 Hz 配置的参数1)
型号 Q1
-B10
-C10
-D10
-E10
波长 1053 or 1064 nm
1064 nm
1053 nm
脉冲频率2) Single-shot to 10 Hz
脉宽 3) < 8 ns
< 7 ns
单脉冲能量@ 4) 1053/1064 nm 10 mJ
20 mJ
35 mJ
45 mJ
526.5/532 nm 5 mJ
10 mJ
17 mJ
22 mJ
351/355 nm 3 mJ
6 mJ
10 mJ
13 mJ
263/266 nm 1.5 mJ
3 mJ
5 mJ
7 mJ
211/213 nm 0.5 mJ
1 mJ
2 mJ
2.5 mJ
脉冲-脉冲能量稳定性 @ 5) 1053/1064 nm <0.5 % RMS
526.5/532 nm <2.5 % RMS
351/355 nm <3.5 % RMS
263/266 nm <4 % RMS
211/213 nm <5 % RMS
功率漂移 6) ± 3.0 %
光束质量
Bell-shaped, >75 % fit to Gaussian
光束发散角 7) <1 mrad
光束定位稳定性8) < 10 µrad
偏振 Linear, horizontal
光束直径 9) 1.7 mm
2.5 mm
3.5 mm
抖动 10) < 0.5 ns RMS
可选电控激光能量衰减器 10) 透过率范围
0.5 – 95 %
尺寸 激光头 ( W×L×H) 110 × 231× 112 mm3
控制器 (W×L×H) 108× 191 × 59 mm3
功率适配器 (W×L×H)12) 50 × 125 × 31 mm3
谐波发生器 (W×L×H)13) 110 × 242× 112 mm3
工作条件 制冷方式
Air cooled
环境温度 15 – 30 ºC
相对湿度 10 – 80 % (non-condensing)
电压-供电要求 90-230 VAC, single phase, 47-63 Hz 14)
功耗 15 W
25 W
30 W
重复频率20 Hz 版本参数规格1)
Model Q1
-B20
-C20
-D20
Wavelength 1053 or 1064 nm
Pulse repetition rate2) Single-shot to 20 Hz
Pulse duration 3) <8 ns
Pulse energy @ 4) 1053/1064 nm 8 mJ
15 mJ
25 mJ
526.5/532 nm 4 mJ
7.5 mJ
12.5 mJ
351/355 nm 2.5 mJ
5 mJ
7.5 mJ
263/266 nm 1 mJ
1.8 mJ
3 mJ
211/213 nm 0.4 mJ
0.7 mJ
1.2 mJ
Pulse to pulse energy stability @ 5) 1053/1064 nm < 0.5 % RMS
526.5/532 nm <2.5 % RMS
351/355 nm <3.5 % RMS
263/266 nm <4 % RMS
211/213 nm <5 % RMS
Power drift 6) ± 3.0 %
Beam profile
Bell shaped, >75 % fit to Gaussian
Beam divergence 7) <1.5 mrad
Beam pointing stability 8) < 20 µrad
Polarization Linear, horizontal
Typical beam diameter 9) 1.7 mm
2.0 mm
2.5 mm
Jitter 10) < 0.5 ns RMS
Optional motorized attenuator 11) Transmission range
1 – 95 %
Dimensions Laser head ( W×L×H) 110 × 231× 112 mm3
Controller unit (W×L×H) 108× 191 × 59 mm3
Power adapter (W×L×H)12) 50 × 125 × 31 mm3
Harmonic generator (W×L×H)13) 110 × 242× 112 mm3
Operating requirements Cooling requirements
Air cooled
Ambient temperature 15 – 30 ºC
Relative humidity 10 – 80 % (non-condensing)
Mains voltage 90-230 VAC, single phase, 47-63 Hz 14)
Average power consumption <30 W
重复频率50 Hz 版本规格参数 1)
Model Q1
-50
-A50
-B50
Wavelength, nm 1053 or 1064 nm
Pulse repetition rate2) Single-shot to 50 Hz
Pulse duration 3) < 10 ns
<9 ns
<8 ns
Pulse energy @ 4) 1053/1064 nm 2.5 mJ
5 mJ
10 mJ
526.5/532 nm 1.2 mJ
2.5 mJ
5 mJ
351/355 nm 0.6 mJ
1.5 mJ
3 mJ
263/266 nm 0.3 mJ
0.7 mJ
1.5 mJ
211/213 nm 0.1 mJ
0.2 mJ
0.5 mJ
Pulse to pulse energy stability @ 5) 1053/1064 nm < 0.5 % RMS
526.5/532 nm <2.5 % RMS
351/355 nm <3.5 % RMS
263/266 nm <4 % RMS
211/213 nm <5 % RMS
Power drift 6) ± 3.0 %
Beam profile
Nearly TEM00, >80 % fit to Gaussian
Beam divergence 7) <1.5 mrad
Beam pointing stability 8) < 20 µrad
Polarization Linear, horizontal
Typical beam diameter 9) 1.0 mm
1.3 mm
1.5 mm
Jitter 10) < 0.5 ns RMS
Optional motorized attenuator 11) Transmission range
1 – 95 %
Dimensions Laser head ( W×L×H) 110 × 231× 112 mm3
Controller unit (W×L×H) 108× 191 × 59 mm3
Power adapter (W×L×H)12) 50 × 125 × 31 mm3
Harmonic generator (W×L×H)13) 110 × 242× 112 mm3
Operating requirements Cooling requirements
Air cooled
Ambient temperature 15 – 30 ºC
Relative humidity 10 – 80 % (non-condensing)
Mains voltage 90-230 VAC, single phase, 47-63 Hz 14)
Average power consumption <40 W
- Due to continuous improvements all specifications are subject to change. Unless stated otherwise all specifications are measured at fundamental wavelength and maximum pulse repetition rate. The parameters marked typical are not specifications. They are indications of typical performance and will vary with each unit we manufacture.
- Factory-set pulse repetition rate is fixed at max repetition rate shown in the table. Smoothly variable pulse repetition rate is possible when laser is externally triggered. In internal triggering mode repetition rate can be divided by integer number down to f/2, f/3, f/4,.. 1 Hz.
- At FWHM level at fundamental wavelength, measured with 350 ps rise time photodiode.
- Pulse energies for harmonic wavelengths are maximum possible values available from H1 series harmonic generator module. See datasheets of H1 for details.
- Measured during 30 seconds operation after warm-up.
- Over 8 hour period after 20 minutes of warm-up when ambient temperature variation is less than ±2 °C.
- Full angle measured at the 4σ level.
- Peak to peak value, measured for 30 seconds of operation after laser warm-up.
- Beam diameter is measured 20 cm from laser output at the 4σ level.
- In respect to falling edge of pump diode triggering pulse.
- Motorized attenuator intended to be attached to the laser housing. Transmission can be changed remotely trough laser web-server control interface.
- Power adapter dimensions might differ from indicated here, depending on model.
- Q1 laser is compatible all models of stand-alone H1 harmonics generator. Please refer to harmonic generator datasheets for detailed specifications.
- Laser can be powered from appropriate 12 VDC power source. Please inquire for details.
